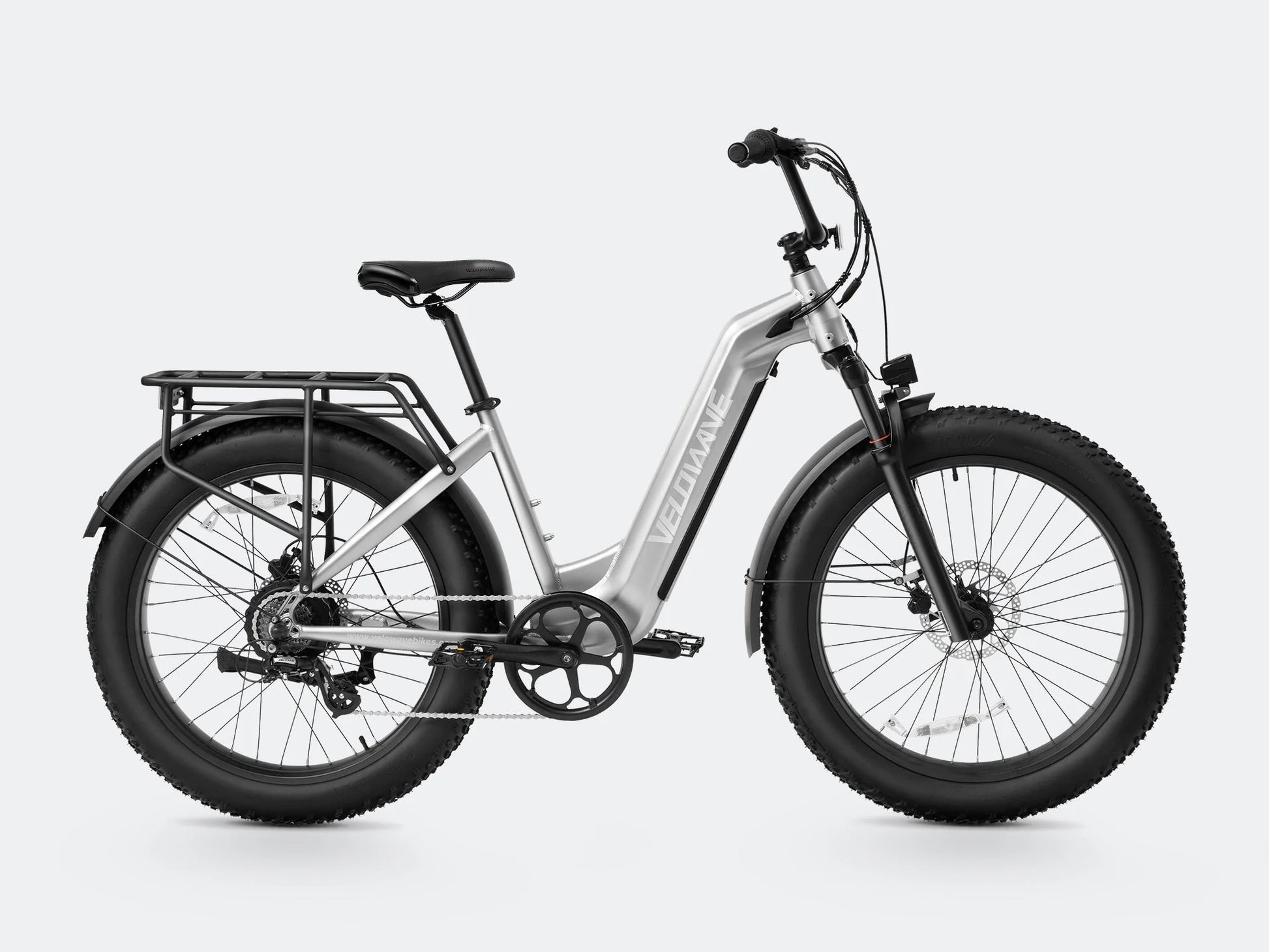

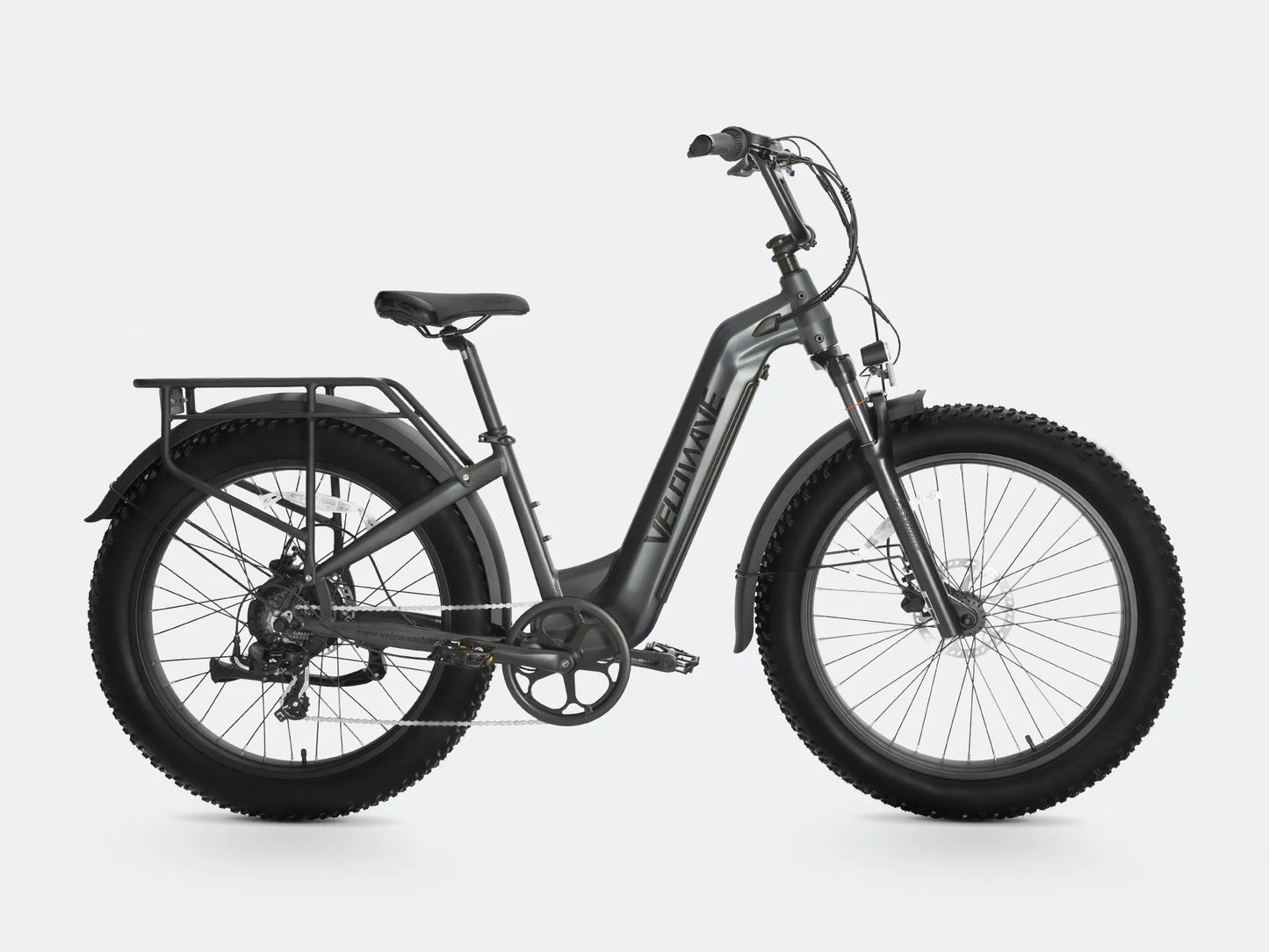

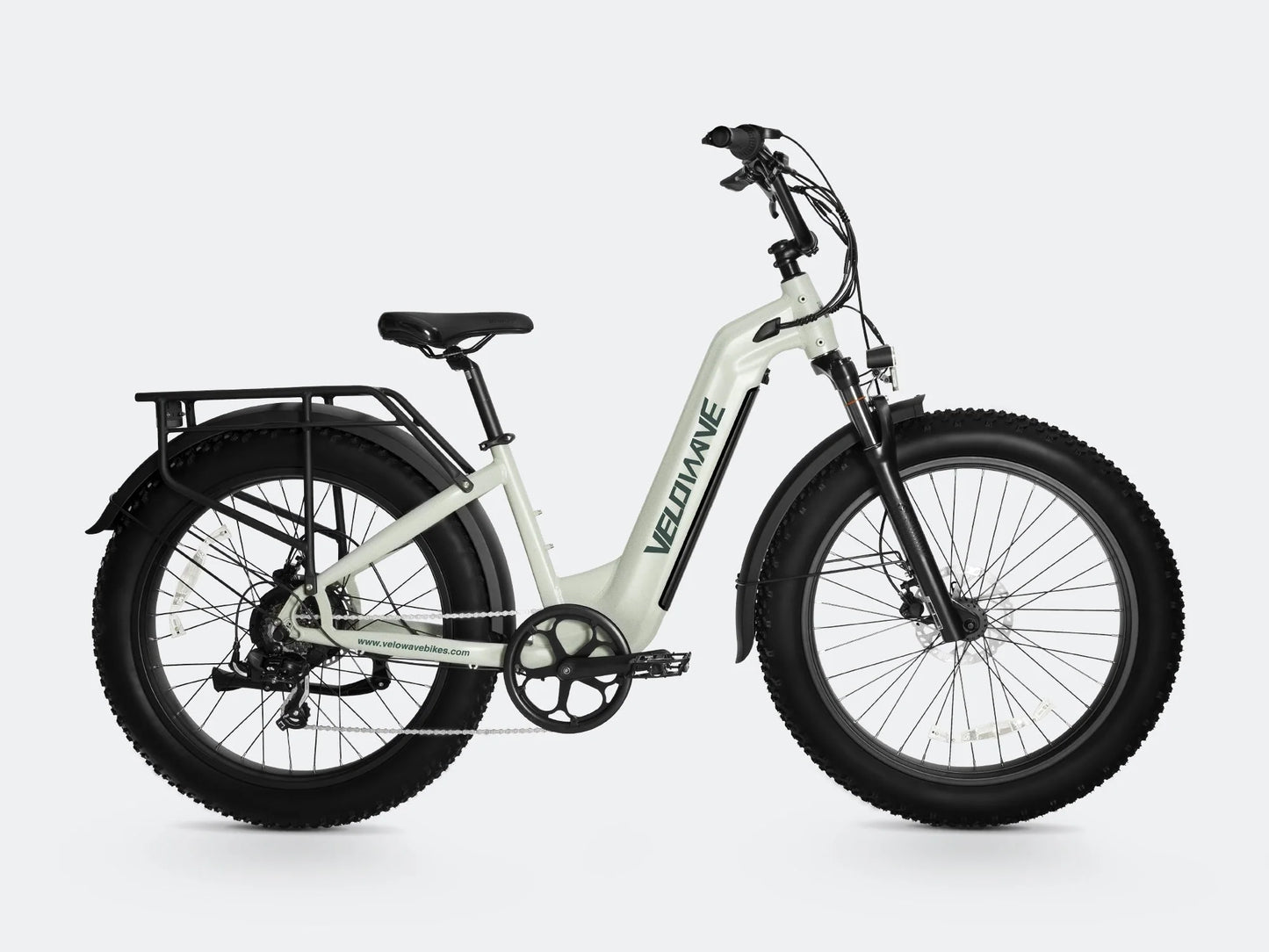

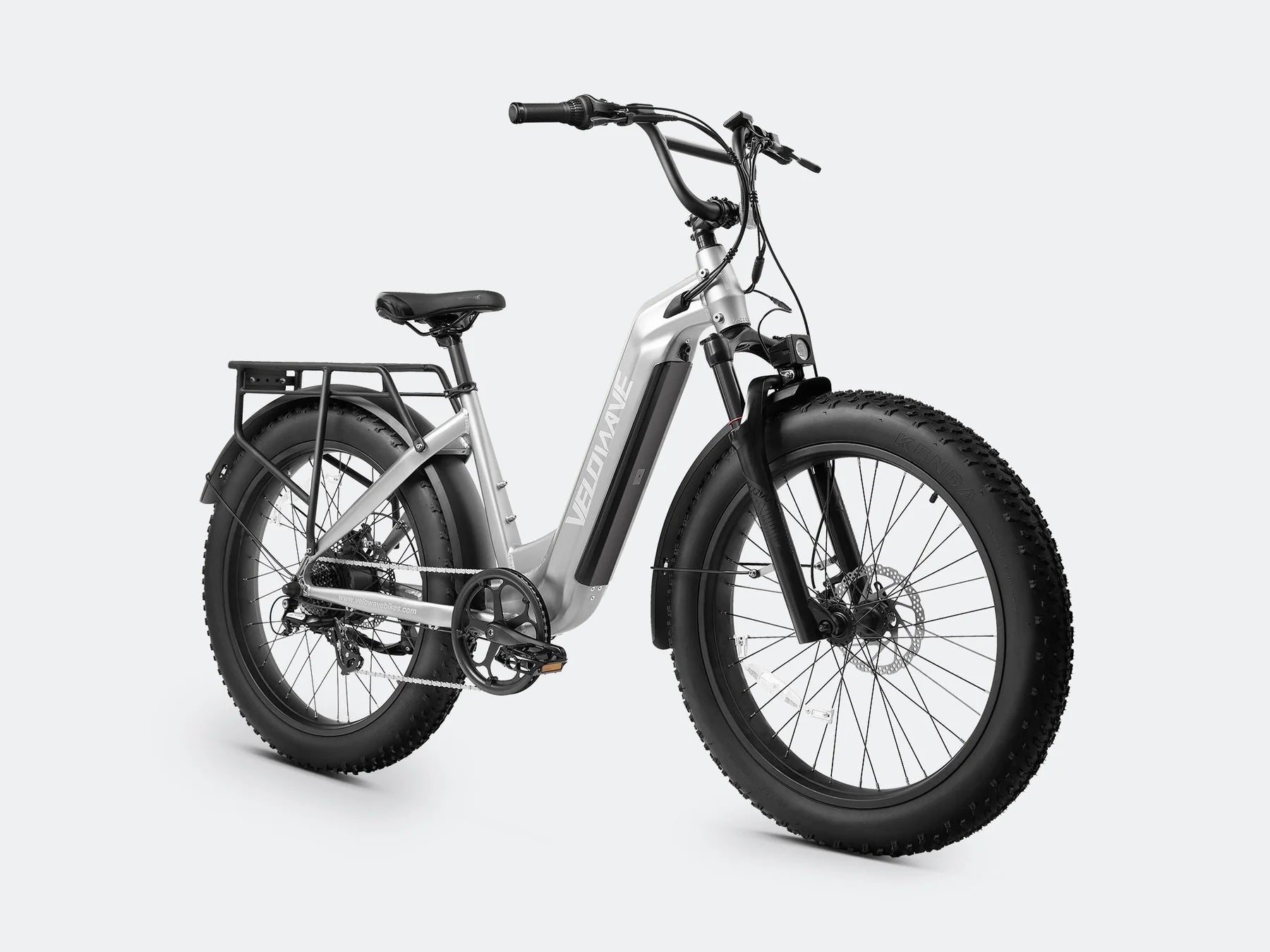

03 Velowave Ranger 2.0 E-Bike - Step-Thru - 750Watt Motor - 26x4 Fat Tire -
03 Velowave Ranger 2.0 E-Bike - Step-Thru - 750Watt Motor - 26x4 Fat Tire -
Regular price
$1,399.00 USD
Regular price
$1,799.00 USD
Sale price
$1,399.00 USD
Unit price
/
per
Couldn't load pickup availability
General
- Classes:Class 3(Ebikes can go up to 28mph with pedal assistance)
- Max Speed: 28MPH by pedal, 20MPH by throttle
- Range:up to 90 Miles by Pedal; 30+ Miles by Throttle(Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)
- Pedal Assist: 5 Levels
Frameset
- Frame: 6061 Aluminium, Removable Battery, Internal Routing
- Fork: Hydraulic Suspension Fork with 60mm travel, with lockout
Wheels
- Rim Material: Aluminum
- Rim Size: 26" 36H Front & Rear
- Front Wheel Spokes: 13G x 244/246mm, Black Stainless
- Rear Wheel Spokes: 12G x 217/219mm, Black Stainless
- Tubes: Butyl Rubber, Schrader Valve
- Hubs: Disc Nutted Front /Rear Axles
- Tire: Kenda Fat Tires
- Tire Size: 26" x 4.0"
E-system

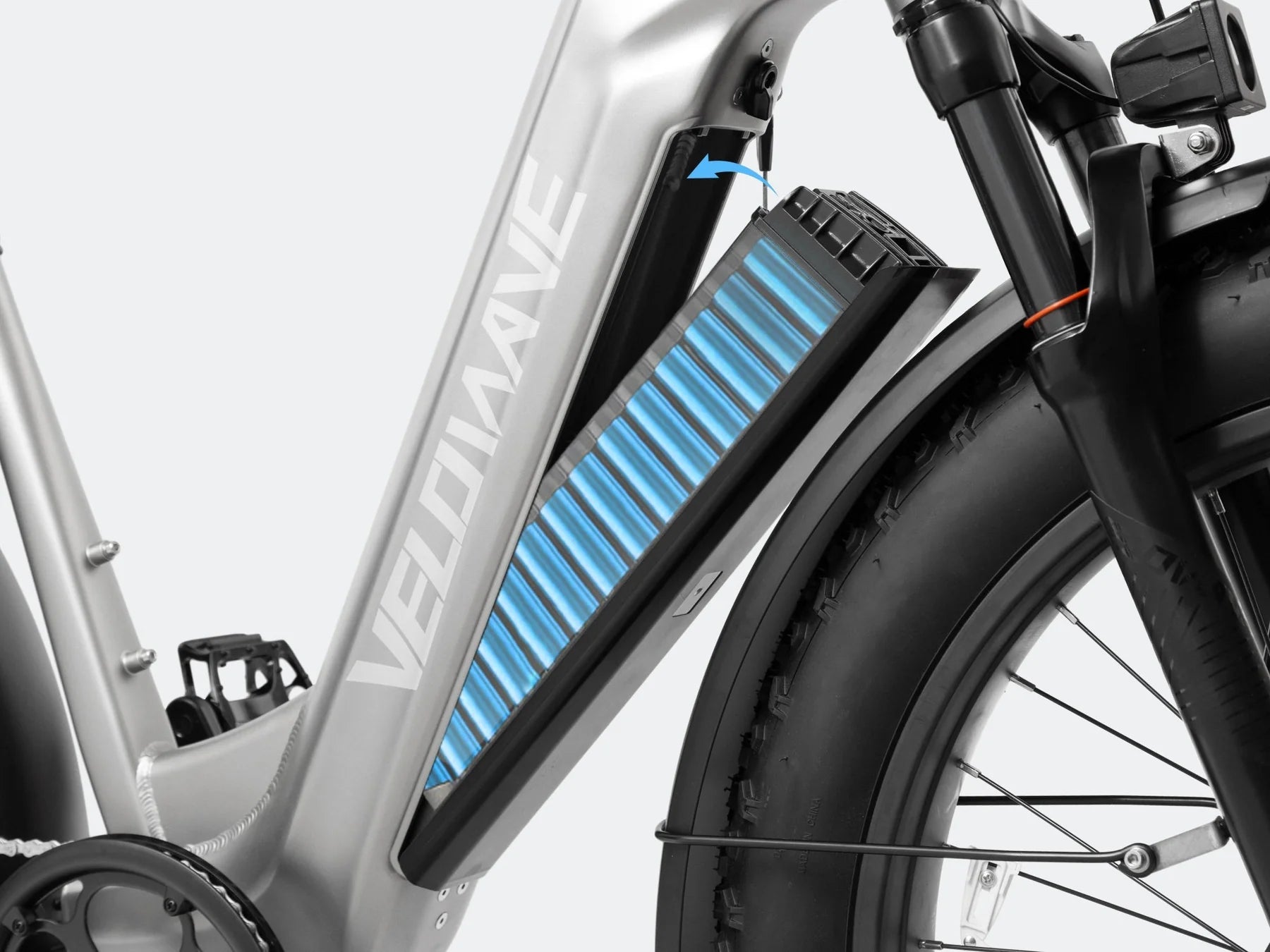

- Battery: Removable Internal Lithium-ion Battery, 48V 15Ah, 720Wh, LG Cells
- Charger: 48V 2 Amp Charger, Approx. 8 Hour Charging, Aviation Connector. UL LISTED

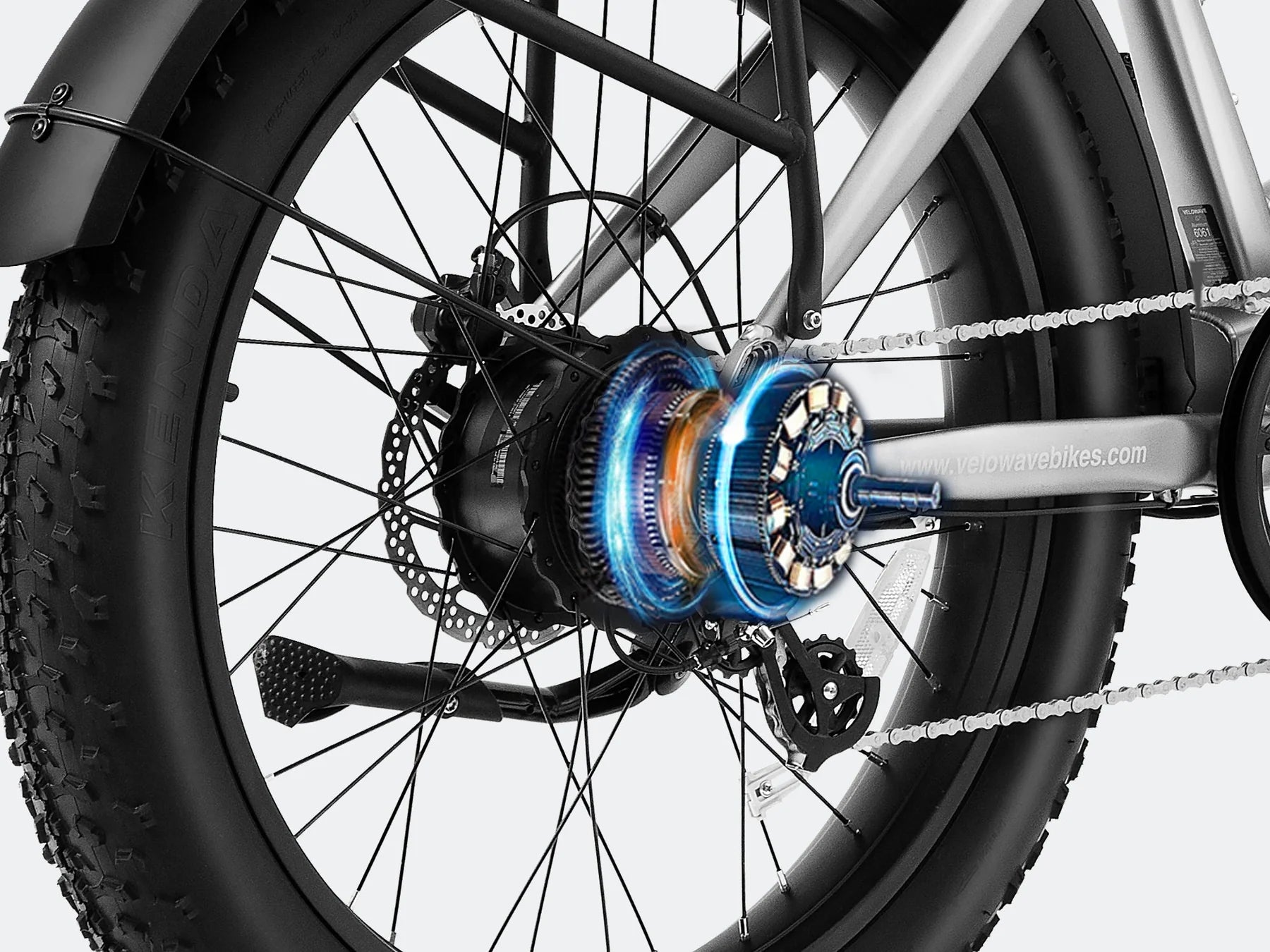

- Motor: Geared Hub Motor, Rated 750W, Peak 1000W, Max Torque 80NM
- Controller: 48V 25A Peak

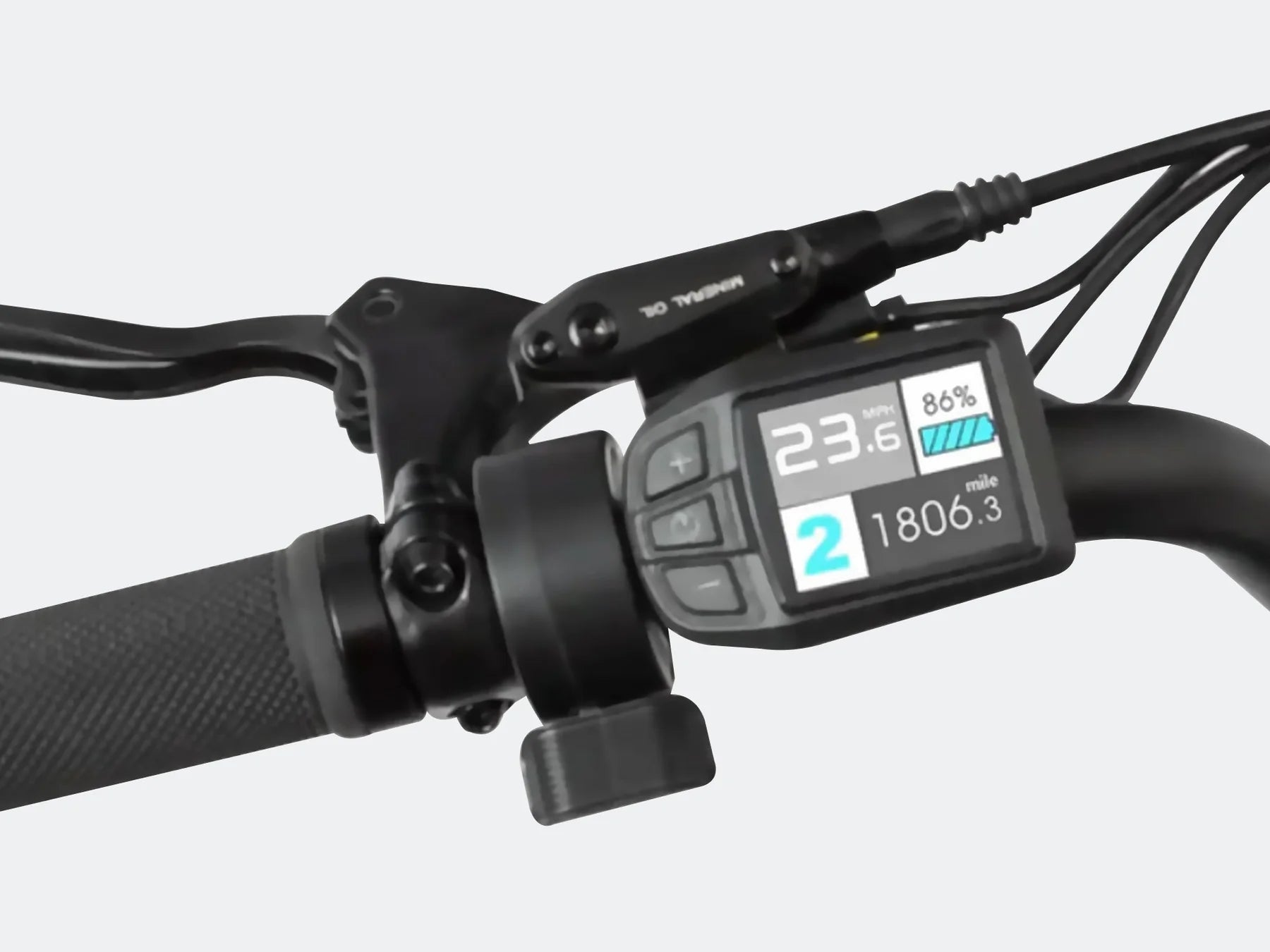

- Display: Multifunctional Color-Screen Display
- Pedal Assist: Cadence Sensor
- Throttle: Thumb Throttle
- Front Light: 48V 10W LED Light, 30 LUX
Drivetrain
- Shifter: Shimano 7-Speed RevoShift
- Rear Derailleur: Shimano ARDTY500D 7-Speed, Long Cage
- Crank & Chainring: 52T, 170mm Alloy Crank
- Freewheel: Shimano 14-28T, 7-Speed freewheel
- Pedal: Alloy Platform Pedals
- Chain: KMC 124 Link, 7-Speed
Components
- Saddle: Comfortable Wide Saddle
- Seatpost: Forged Alloy, Ø30.4*350mm
- Seat Clamp: Ø35mm Quick Release
- Stem: Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 70mm, RISE: ±7°
- Handlebar:Aluminum Ø31.8mm, Width 720mm
- Headset: Sealed Bearing Headset
- Grips: Nylon Lock-on, Ergonomic Comfort
- Brake: Front & Rear Hydralic Disc Brakes, with180mm discs, with power-cut-off function
- Brake rotor: 180mm, 1.9mm thick
- Kickstand: Side Kickstand, Alloy, Rear Mount
- Fenders: Plastic 26"x110mm
- Rear Rack: Aluminum Alloy Rear Rack
Weight
- Net Weight:34.9kg (76.94lb) ( including battery)
- Gross Weight:45.6kg (100.53lb)
- Battery Weight: 4kg (8.82lb)
- Weight limit:136 kg (300 lb) Payload Capacity
Size
- Product Size:1930x740x1210mm
- Packing Size: 1570x330x900mm
