Introducing the FOREST XM MTB e-bike By Velowave - Mountain Bike - Up to 85 Miles* on PAS, 60 Miles* on Throttle

Name: Introducing the FOREST XM MTB e-bike By Velowave - Mountain Bike - Up to 85 Miles* on PAS, 60 Miles* on Throttle
Brand: Ride-Electric-Bikes
Price: 3199.0 USD
Availability: InStock

$3,199.00 USD

~~$3,499.00 USD~~ $3,199.00 USD

Sale Sold out

Low stock: 2 left

Color Dark Blue Dark Green

Size 17" 19"

Quantity

Introducing the Forest XM e-bike, featuring robust shock absorbers and advanced suspension for a smoother, more comfortable ride. Made with high-performance 6061 Aluminum Alloy and perfectly balanced with a 133 mm frame travel, the Forest XM provides innovation, performance, and style all in one dynamic package. Say goodbye to bumpy gravel and pothole-filled rides with this sleek and integrated battery e-bike.

Size	17''	19''
Total Length	2033mm	2043mm
Head Tube Length	150mm	150mm
Seat Tube	432mm	483mm
Handlebar Height	1135mm	1135mm
Wheelbase	1303mm	1313mm
Standover Height	754mm	798mm
Reach	468mm	478mm
Seat Height Min/Max	866mm/1021mm	910mm/1065mm

General

Max Speed:Up to 28 MPH on Pedal Assist; 20 MPH on Throttle
Range:Up to 85 Miles* on PAS, 60 Miles* on Throttle ( Range Per Charge is measured under the conditions that power is sufficient, with a 75kg load, at 86°F(30°C), 70% humidity, on a level road, in pedal assist mode with level 1 assistance, and in pure electric riding mode by throttle. Actual results may vary based on differences in temperature, load, wind speed, road conditions and other factors.)

Frameset

Frame:6061 Alluminum Alloy with Internal Battery, with Front and Rear Suspension, Frame Travel 133 mm
Fork:Air Suspension Fork with 140mm travel, with lockout

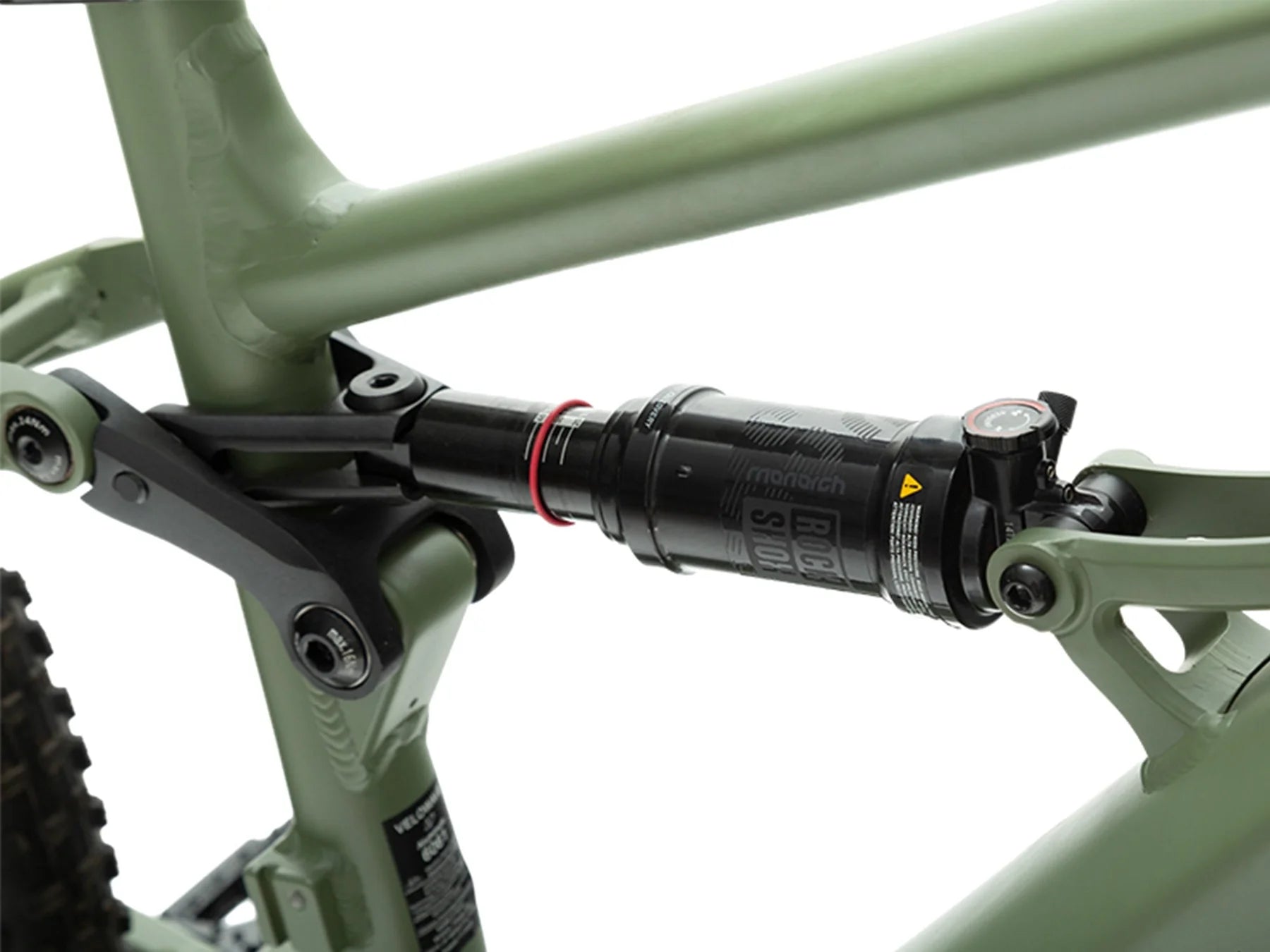

Rear Suspension:Rockshox RS-MNR-R-C4 184X44 air spring with 44mm travel, with external rebound adjustment

Wheels

Rim:Aluminum 27.5" 36H Front & Rear
Front Wheel Spokes:Black Stainless 13G x 269/270 mm, Front and Rear
Hubs:Disc Nutted Front / Rear Axles
Tire:Kenda 27.5" x 2.8" Tires
Tire Size:27.5" x 2.8"

E-system

Battery:Removable Internal Lithium-ion Battery 48V 20Ah (960Wh) with LG cells
Charger:48V 3 Amp Charger, Approx. 7 Hour Charging

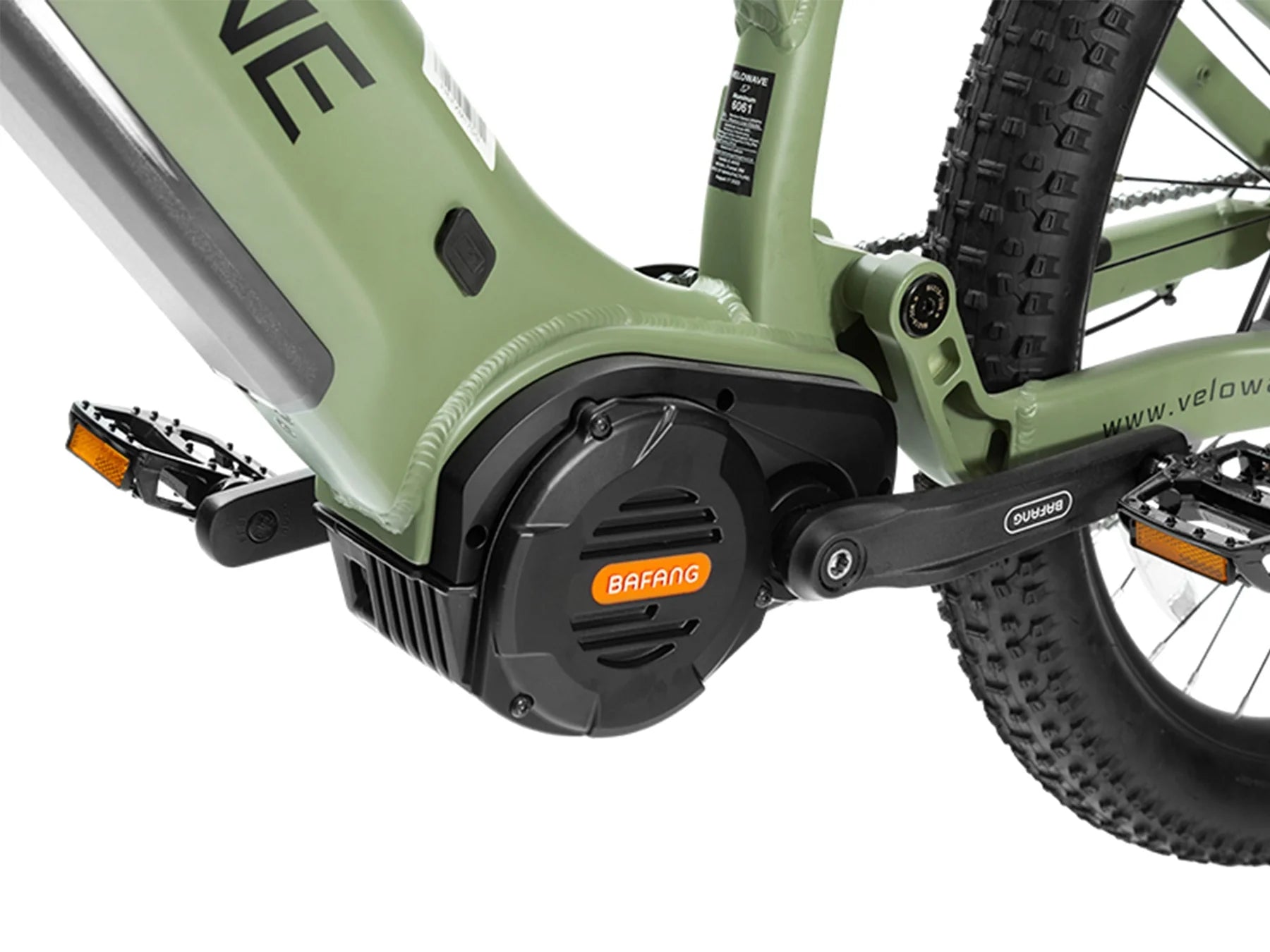

Motor:1000W （Peak 1200W），160Nm

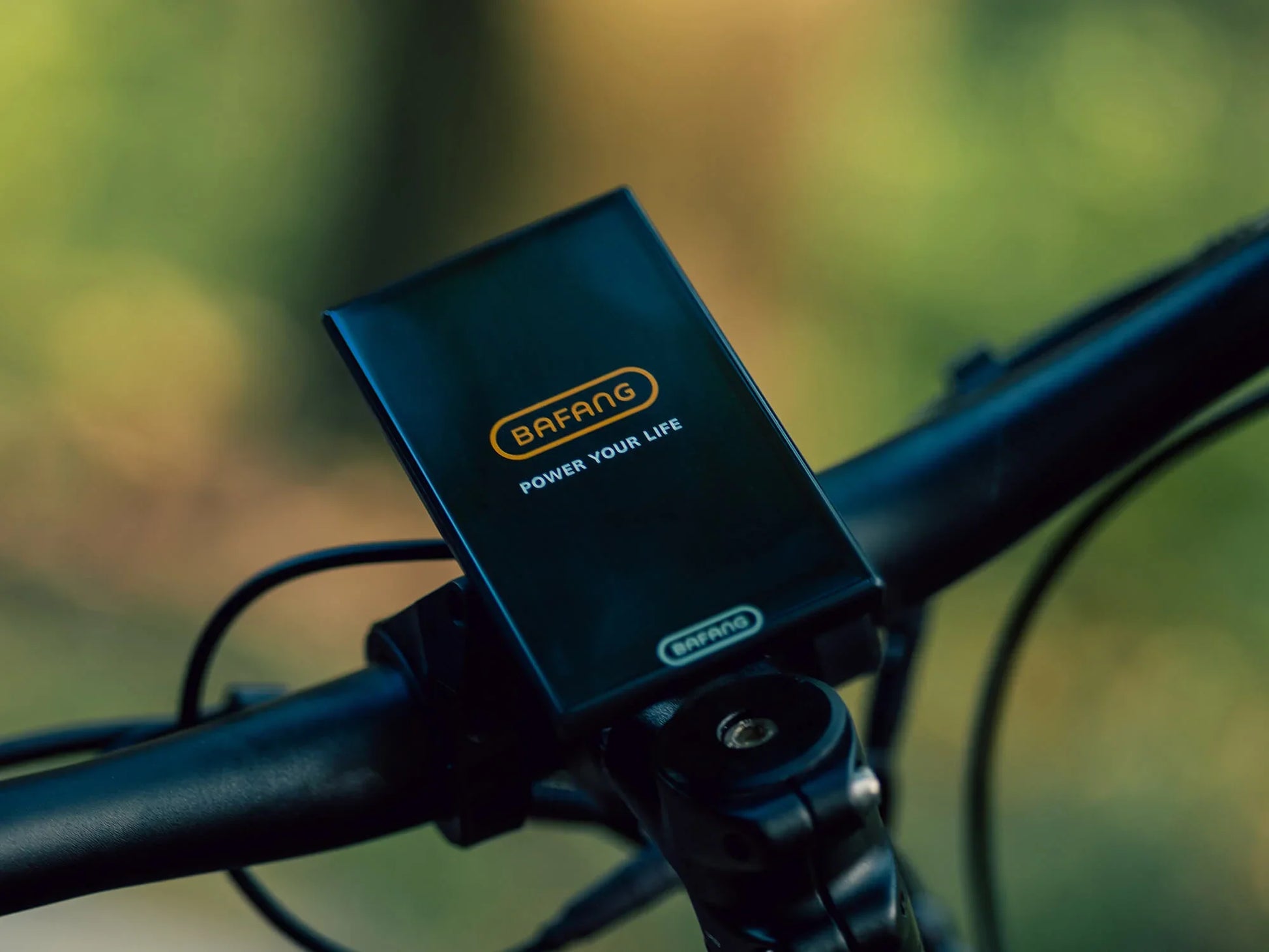

Display:TFT Smart Easy Read Display with Backlight, Colorful screen
Pedal Assist:6 Levels
Sensor:Torque Sensor
Throttle:Throttle on demand - Throttle from a complete stop
Light:Front 48V LED Light 80 LUX; Rear Blinking Light

Drivetrain

Shifter:Shimano 10-Speed Thumb Shift
Crankset:170mm w/ 40 T

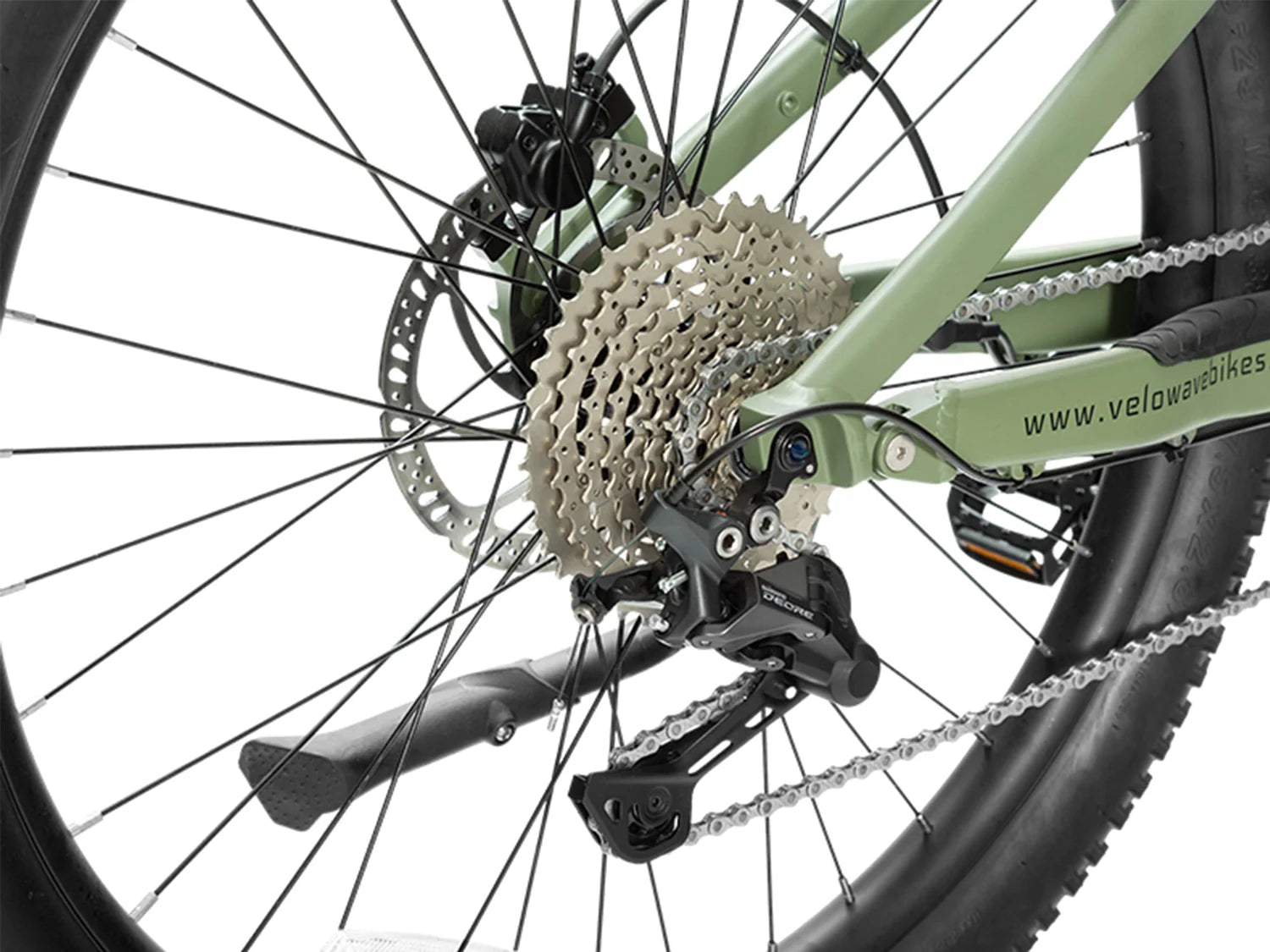

Freewheel:Shimano 11-42T, 10-Speed CASSETTE
Pedals:Alloy Platform
Chain:KMC 134 Link, 10-Speed
Rear Derailleur:Shimano Deore RD-M4120 10-Speed

Components

Saddle:Comfortable Wide Saddle
Seatpost:Forged Alloy, φ31.6x300mm
Seat Clamp:φ38.1mm Quick Release
Stem:Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 60mm, RISE: 6°
Handlebar:Aluminum 31.8mm, Width 740mm
Headset:Sealed Bearing Headset
Grips:Ergonomic Comfort
Brakes:Tektro Hydraulic Disc Brakes w/180mm discs, w/ power-cut-off function
Kickstand:Included, Rear Mount
Fenders:Not Included
Rear Rack:Not Included
