BRAWNY XM E-Bike by Velowave - Mountain Bike - Up to 85 Miles* on PAS, 60 Miles* on Throttle - 28 MPH
BRAWNY XM E-Bike by Velowave - Mountain Bike - Up to 85 Miles* on PAS, 60 Miles* on Throttle - 28 MPH
Regular price
$3,499.00 USD
Regular price
$3,799.00 USD
Sale price
$3,499.00 USD
Unit price
per
Low stock: 2 left
Couldn't load pickup availability
Experience new levels of adventure with the BRAWNY XM E-Bike by Velowave. Featuring a lightweight aluminum alloy frame and integrated front and rear suspension, this electric bike offers 139mm of plush travel to tackle any terrain. Smooth out bumps and enjoy a comfortable and controlled ride like never before.
| Size | 17'' | 19'' |
| Total Length | 2087mm | 2100mm |
| Head Tube Length | 150mm | 150mm |
| Seat Tube | 432mm | 483mm |
| Handlebar Height | 1158mm | 1158mm |
| Wheelbase | 1318mm | 1331mm |
| Standover Height | 774mm | 823mm |
| Reach | 469mm | 475mm |
| Seat Height Min/Max | 841mm/1040mm | 890mm/1090mm |
General
- Classes:Class 3 (Ebikes can go up to 28mph with pedal assistance)
- Max Speed:Up to 28 MPH on Pedal Assist; 20 MPH on Throttle
- Range:Up to 85 Miles* on PAS, 60 Miles* on Throttle ( Range Per Charge is measured under the conditions that power is sufficient, with a 75kg load, at 86°F(30°C), 70% humidity, on a level road, in pedal assist mode with level 1 assistance, and in pure electric riding mode by throttle. Actual results may vary based on differences in temperature, load, wind speed, road conditions and other factors.)
Frameset
- Frame:6061 Alluminum Alloy with Internal Battery, with Front and Rear Suspension, Frame Travel 139 mm
- Fork:Air Suspension Fork with 100mm travel, with lockout

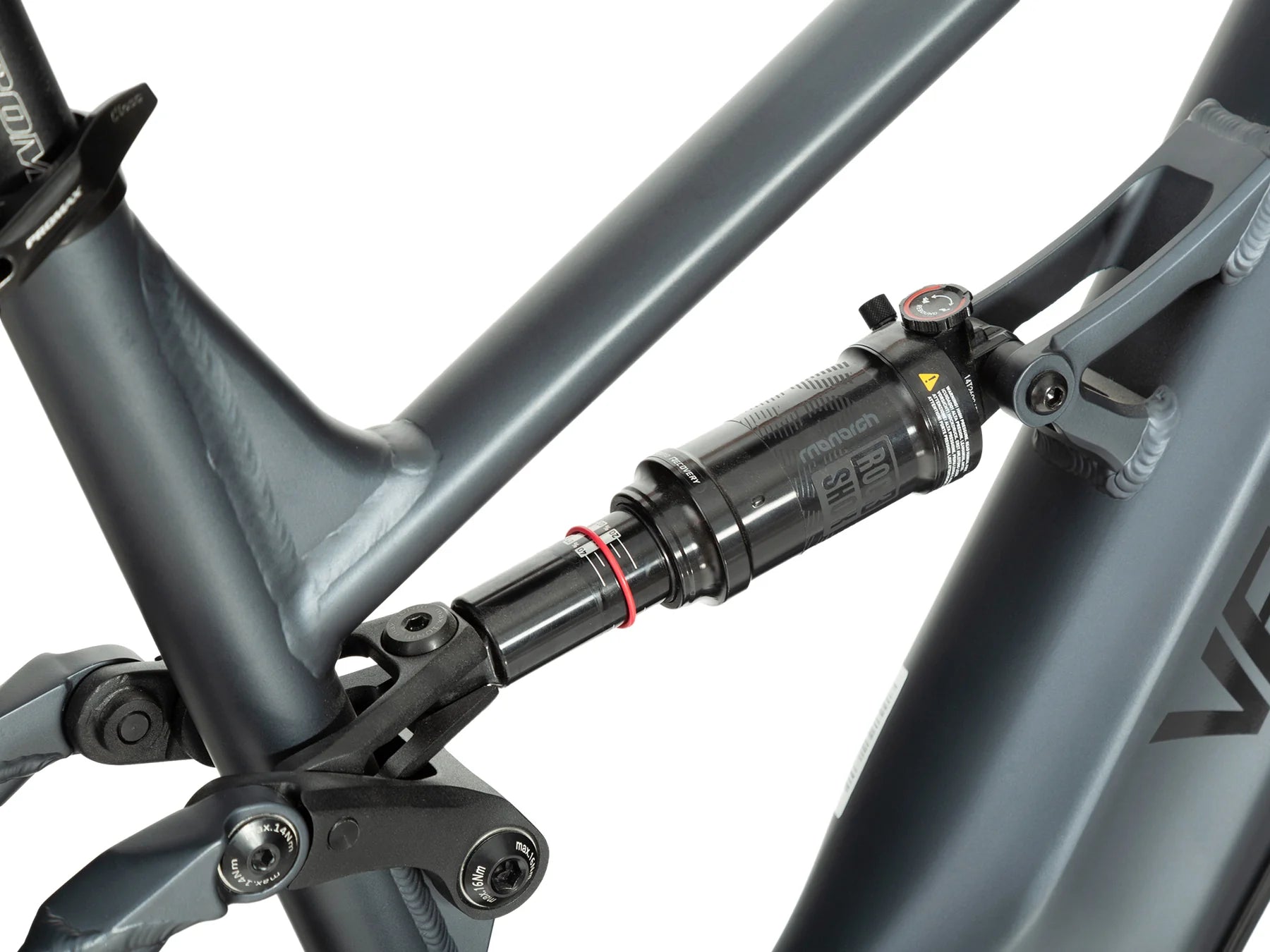

- Rear Suspension:Rockshox RS-MNR-R-C4 184X44 air spring with 44mm travel, with external rebound adjustment
Wheels
- Rim:Aluminum 26" 36H Front & Rear
- Front Wheel Spokes:Black Stainless 13G x 255/257 mm, Front and Rear
- Hubs:Disc Nutted Front / Rear Axles
- Tire:Kenda 26" x 4.8" Fat Tires
- Tire Size:26" x 4.8"
E-system

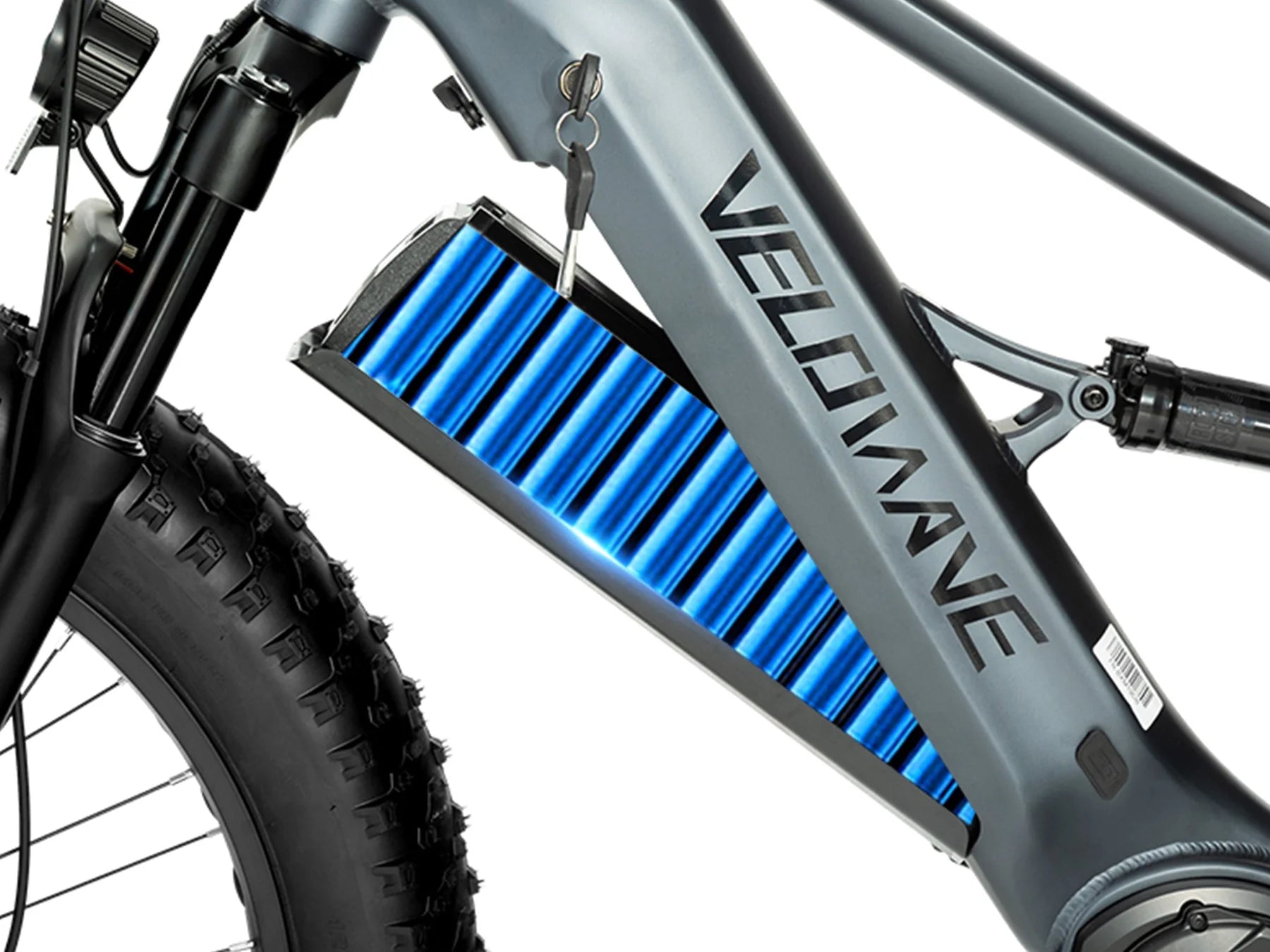

- Battery:Removable Internal Lithium-ion Battery 48V 20Ah (960Wh) with LG cells
- Charger:48V 3 Amp Charger, Approx. 7 Hour Charging

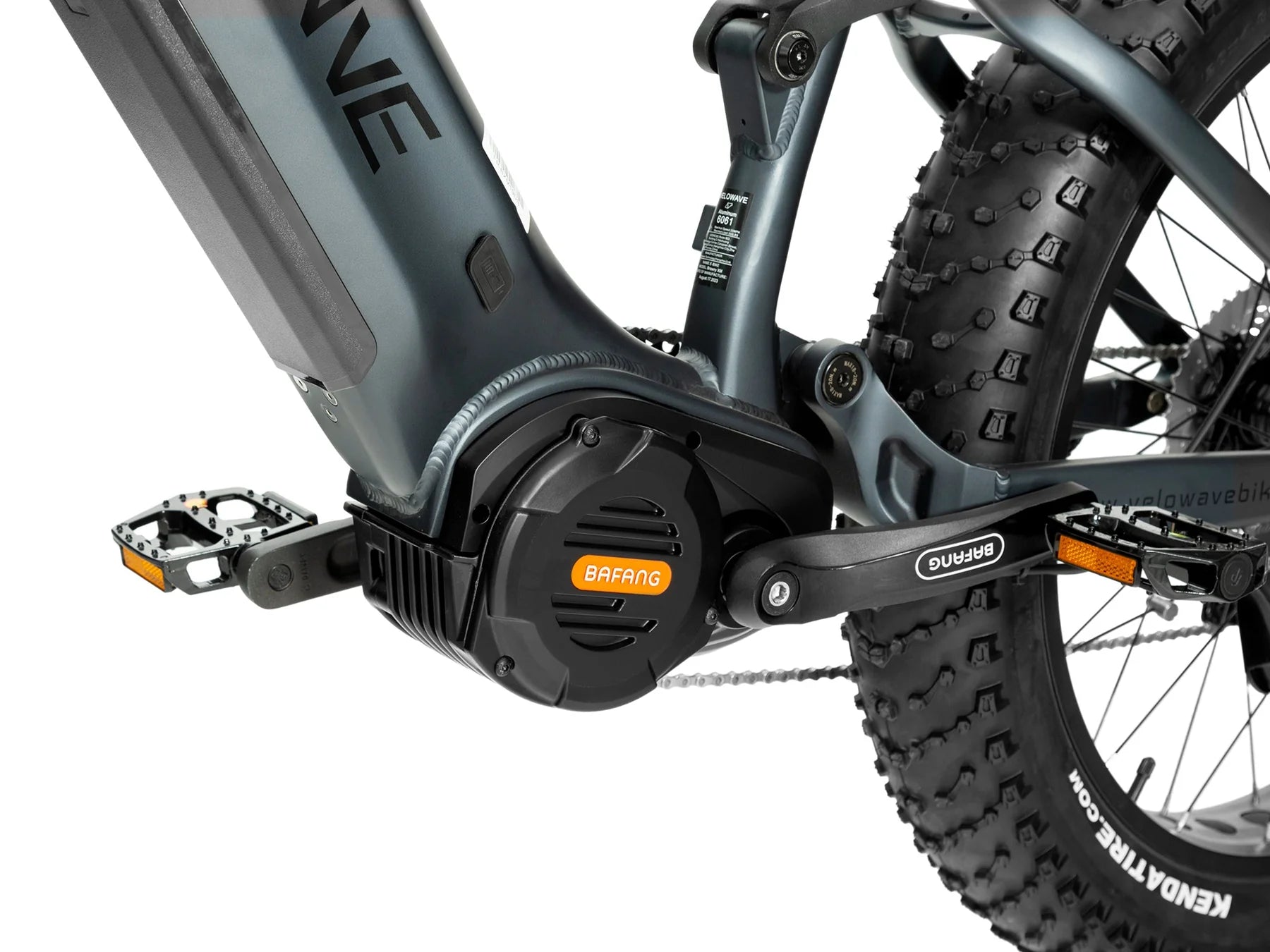

- Motor:1000W （Peak 1200W），160Nm

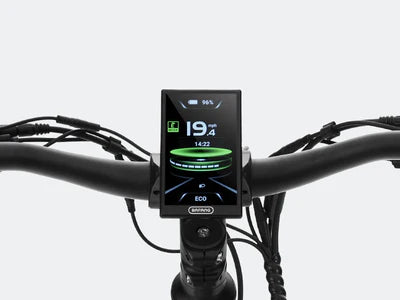

- Display:TFT Smart Easy Read Display with Backlight, Colorful screen
- Pedal Assist:6 Levels
- Sensor:Torque Sensor
- Throttle:Throttle on demand - Throttle from a complete stop
- Light:Front 48V LED Light 80 LUX; Rear Blinking Light
Drivetrain
- Shifter:Shimano 10-Speed Thumb Shift
- Pedal Assist:6 Levels
- Crankset:170mm w/ 48 T
- Freewheel:Shimano 11-42T, 10-Speed CASSETTE
- Pedals:Alloy Platform
- Chain:KMC 134 Link, 10-Speed

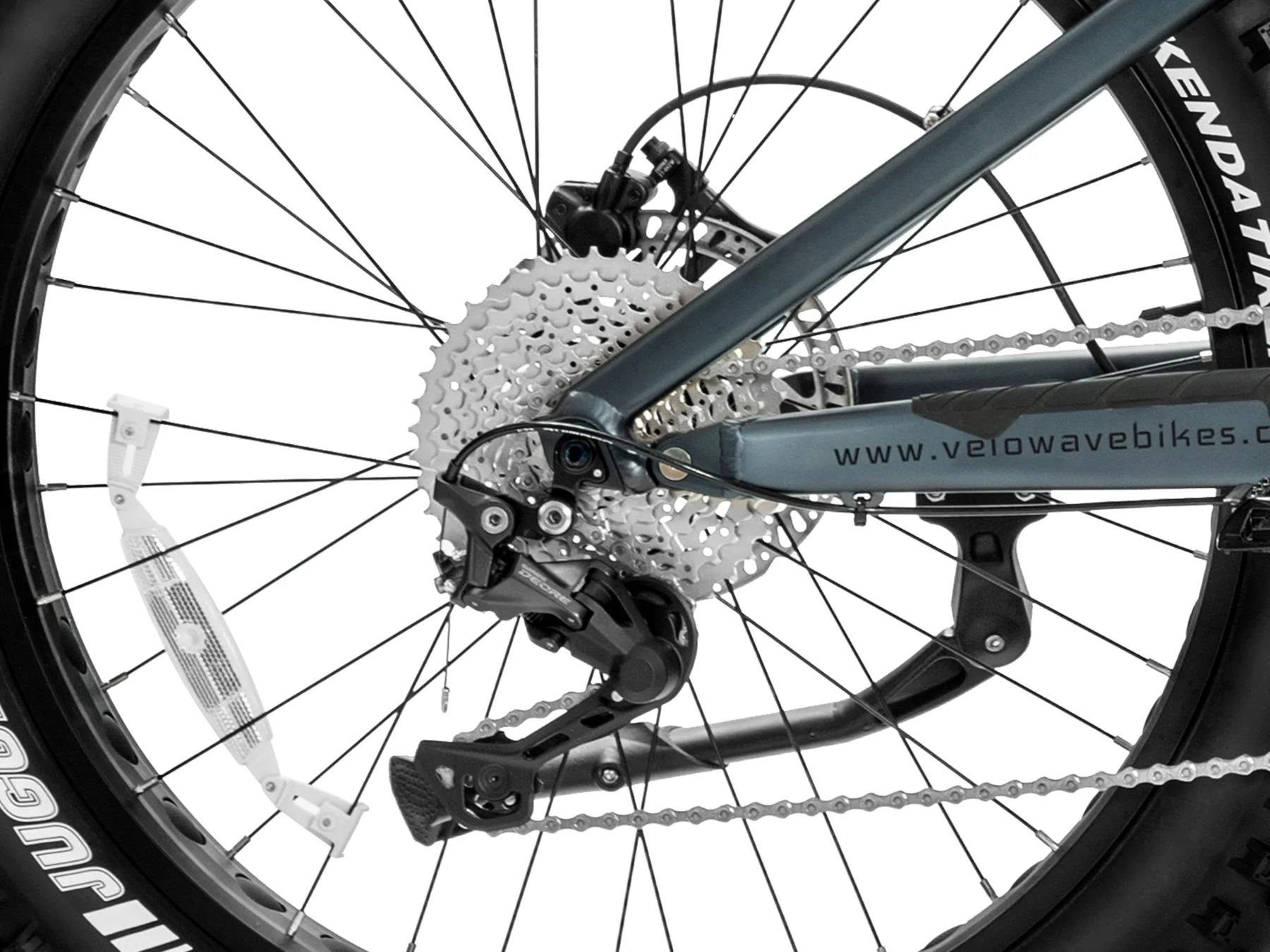

- Rear Derailleur:Shimano Deore RD-M4120 10-Speed
Components
- Saddle:Comfortable Wide Saddle
- Seatpost:Forged Alloy, φ31.6x300mm
- Seat Clamp:φ38.1mm Quick Release
- Stem:Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 60mm, RISE: 6°
- Handlebar:Aluminum Ø31.8mm, Width 740mm
- Headset:Sealed Bearing Headset
- Grips:Ergonomic Comfort
- Brakes:Tektro Hydraulic Disc Brakes w/180mm discs, w/ power-cut-off function
- Kickstand:Included, Rear Mount
- Fenders:Not Included
- Rear Rack:Not Included
Weight
- Net Weight:82 lbs / 37.2 kg (including battery)
- Gross Weight:111 lbs / 50.5 kg
- Battery Weight:11.4 lbs / 5.15 kg
- Max Load Capacity:385 lbs / 175 kg (including cargo)
Size
- Product Size:2100 x 1158 x 745 mm
- Packing Size:1700 x 350 x 900 mm
